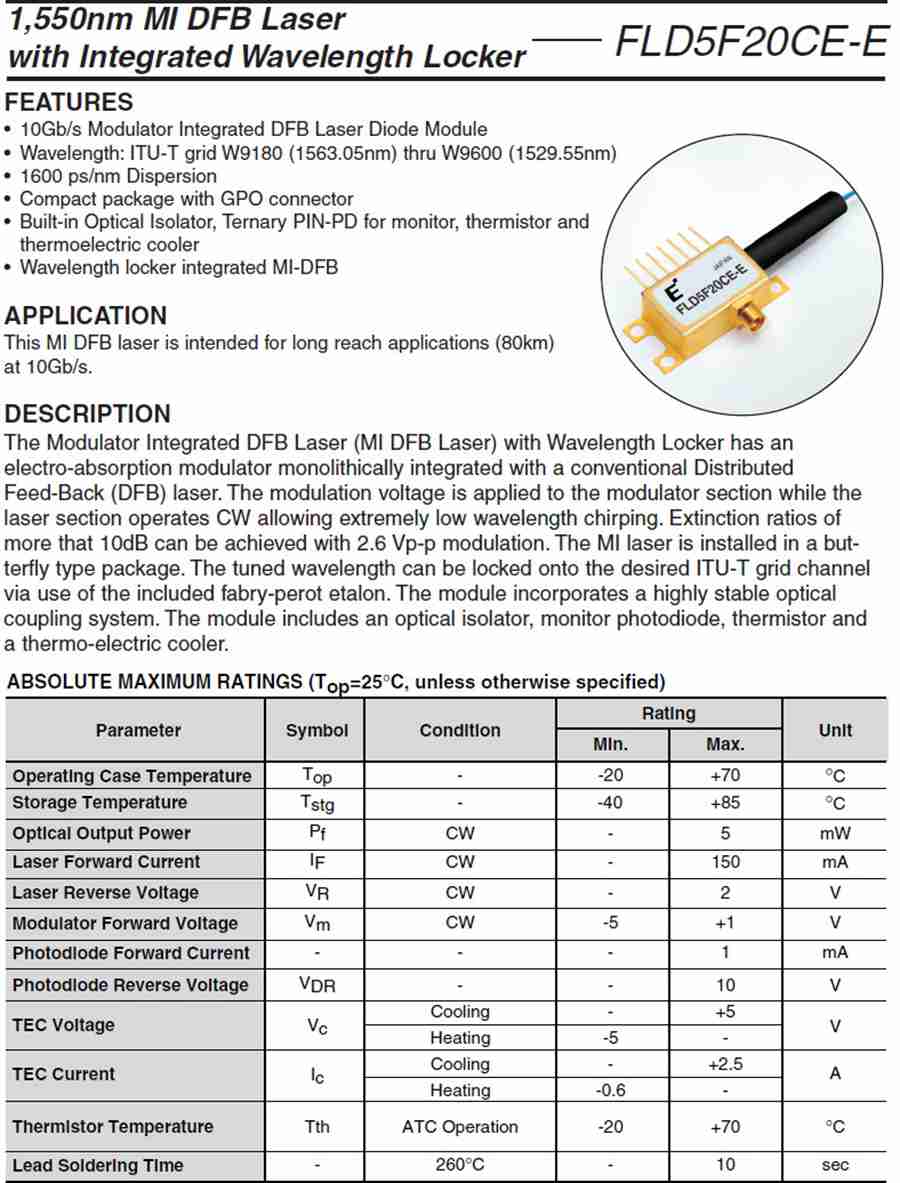

Eudyna優(yōu)迪娜 10Gb/s速率 EML 光調(diào)制集成DFB 激光器模塊1531.90nm FLD5F20CE
Features
? 10Gb/s Modulator Integrated DFB Laser Diode Module
? Wavelength: ITU-T grid W9180 (1563.05nm) thru W9600 (1529.55nm)
? 1600 ps/nm Dispersion
? Compact package with GPO connector
? Built-in Optical Isolator, Ternary PIN-PD for monitor, thermistor and
thermoelectric cooler
? Wavelength locker integrated MI-DFB
Application
This MI DFB laser is intended for long reach applications (80km) at 10Gb/s.
Description
The Modulator Integrated DFB Laser (MI DFB Laser) with Wavelength Locker has an
electro-absorption modulator monolithically integrated with a conventional Distributed
Feed-Back (DFB) laser. The modulation voltage is applied to the modulator section while the
laser section operates CW allowing extremely low wavelength chirping. Extinction ratios of
more that 10dB can be achieved with 2.6 Vp-p modulation. The MI laser is installed in a butterfly
type package. The tuned wavelength can be locked onto the desired ITU-T grid channel
via use of the included fabry-perot etalon. The module incorporates a highly stable optical
coupling system. The module includes an optical isolator, monitor photodiode, thermistor and
a thermo-electric cooler.
