Agiltron CrystaLatch 1x2 Fiber Optic Switch Dual Stage High Power Bidirectional 光纖開(kāi)關(guān)雙級(jí)高功率雙向
Overview

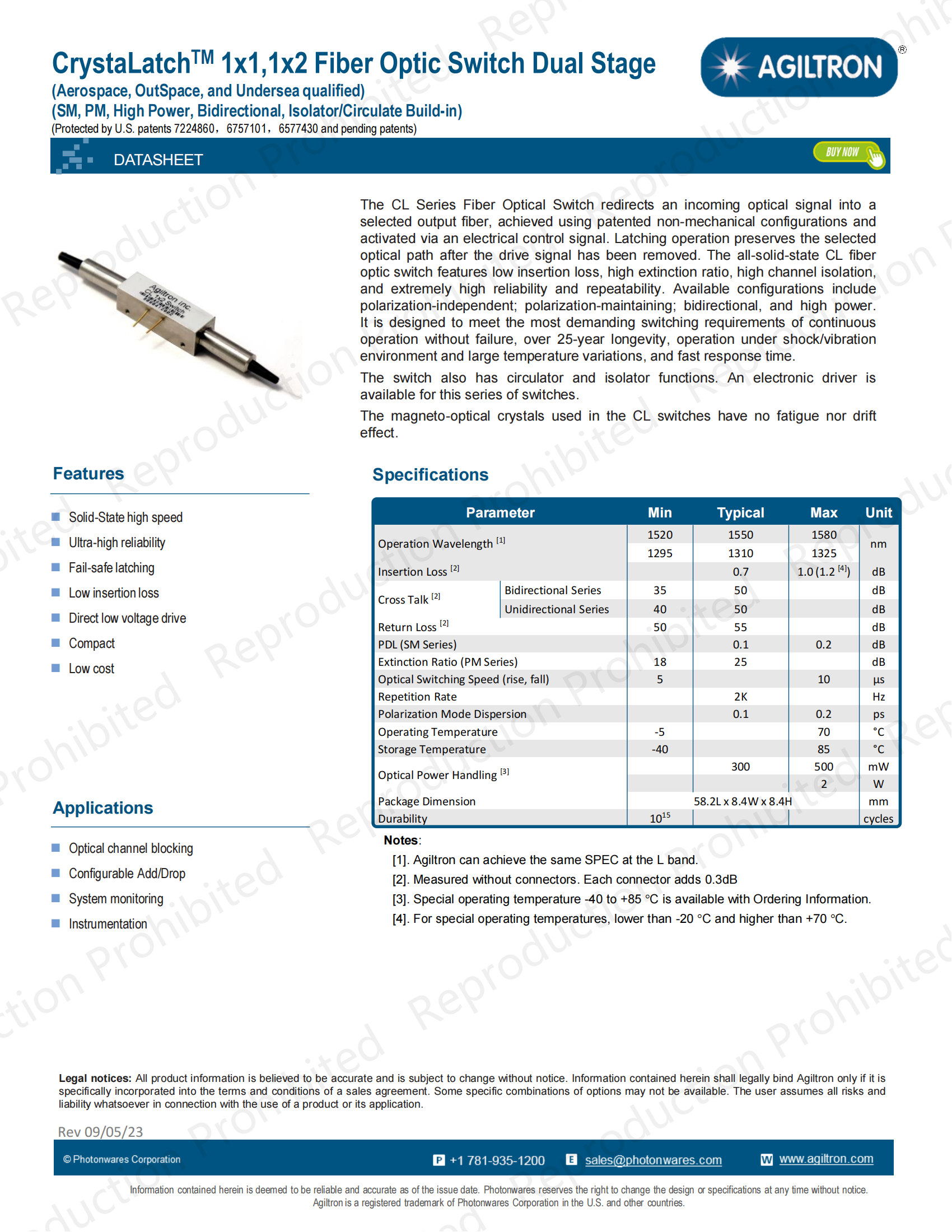

The CL Series Fiber Optical Switch redirects an incoming optical signal into a
selected output fiber, achieved using patented non-mechanical configurations and
activated via an electrical control signal. Latching operation preserves the selected
optical path after the drive signal has been removed. The all-solid-state CL fiber
optic switch features low insertion loss, high extinction ratio, high channel isolation,
and extremely high reliability and repeatability. Available configurations include
polarization-independent; polarization-maintaining; bidirectional, and high power.
It is designed to meet the most demanding switching requirements of continuous
operation without failure, over 25-year longevity, operation under shock/vibration
environment and large temperature variations, and fast response time.
The switch also has circulator and isolator functions. An electronic driver is
available for this series of switches.
The magneto-optical crystals used in the CL switches have no fatigue nor drift
effect.
Features
? Solid-State high speed
? Ultra-high reliability
? Fail-safe latching
? Low insertion loss
? Direct low voltage drive
? Compact
? Low cost
Applications
? Optical channel blocking
? Configurable Add/Drop
? System monitoring
? Instrumentation
